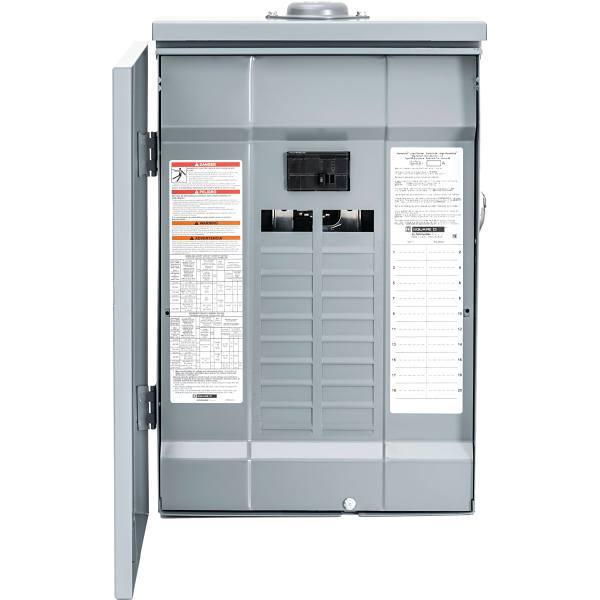

Square D Homeline 100a 20-Space 40-Circuit Outdoor Main Breaker Load Center

Part 285702
MFG PART HOM2040M100PRB
Brand Square D
$161.88
FREE shipping
In lower 48 states
Usually ships next day
Hassle-free returns
*see exclusions

About this item

  • Square D Homeline 100A 20-Space 40-Circuit Outdoor Main Breaker Load Center
  • Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
  • Each Pole Space Accepts Full-Size, Tandem Or Quad Breakers
  • Ground And Neutral Bars Accept Up To (3) #10-14 Equipment Grounds
  • Includes A Rainproof Outdoor Cover
  • Accommodates Plug-On Secondary Surge Arrestor (Sold Separately)
  • Main Feeders Terminate From The Top, Feeders Can Enter From Any Direction, However, Device Cannot Be Rotated
  • Single-Phase
  • Rated 120/240 VAC And 22,000 Air Short Circuit Current Rating
  • Rainproof Cover Features A Stainless Steel Hasp That Is Easily Padlocked For Safety From Theft
  • Designed With Straight-In Mains To Save Expensive Cable And Time
  • Distributed Split Branch Neutral With Terminal Screws Backed Out Offering With Up To 50% More Terminals Than UL Requires Increases Wiring Flexibility Saving Installation Time And Simplifies Wiring
  • Thermoplastic Interior Assembly Is Among The Most Rugged In The Industry
  • Slot/Square Drive Screws Let You Use Either Standard Flat Blade Screwdriver Or Square-Head Driver For Positive Drive And Proper Torque
  • Mfg #HOM2040M100PRB
