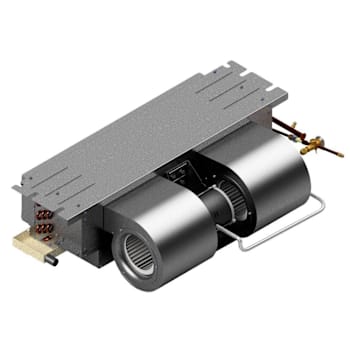

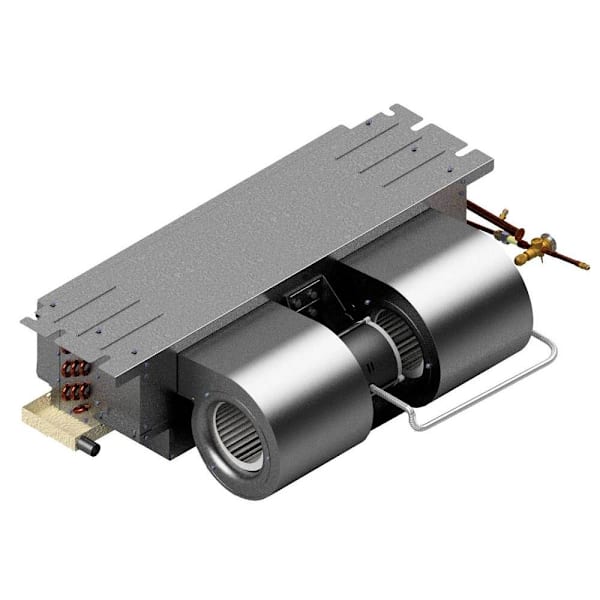

Image for First Co. 2.5 Ton Dx Fan Coil from HD Supply

First Co. 2.5 Ton Dx Fan Coil

Part 259254

MFG PART 30HXS1002UAP000AAF

Brand First Co.

Sign in for price

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships next day

Hassle-free returns
*see exclusions

Product Details

Product Specs

Resources

First Co. 2.5 Ton DX Fan Coil
For R-22 or R-410A refrigerant
Ceiling or fur-down installation
Electric heat
24v control
Galvanized and coated drain pan
Compatible with all major brands of condensing units
43.6 amps
1,000 nominal CFM
208/240 volts
10 kw electric heat - max fuse 60 amps - 43.25w x 21d x 10"h - 71 lb
Hx series
MFG# 30HXS1002UAP000AAF

Make & Model
Brand	First Co.
Country of Origin	USA
UNSPSC	40101708
UPC	850046856907

Specifications
Air Flow	1000 CFM
Amperage	43.6 amp
Cooling Capacity	30000 Btu
Features	A sloped drain pan allows positive drainage of condensate
Liquid Line Size	0.375 in.
Material	Other
Maximum Fuse Amperage	60 amp
Nominal Cooling Capacity	2.5 Ton
Package Quantity	1
Refrigerant Type	R-410A
Suction Line Size	0.875 in.
Voltage	208/240 V
Wattage	10 kW

Assembled Dimensions
Product Depth	21 in.
Product Height	10 in.
Product Weight	71 lb.
Product Width	43.25 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	AHRI Certified
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	10.000
Length	45.125
Size Measure	IN
Weight	71.000
Weight Measure	LB
Width	22.812
