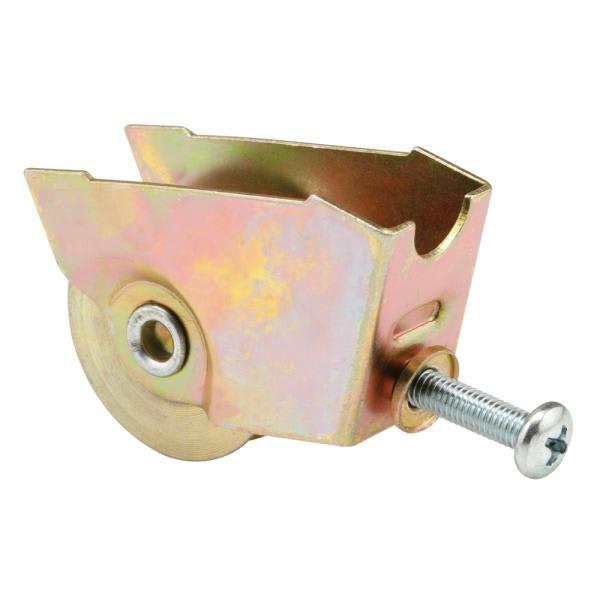

Prime Line® Single 1-1/4 In. Stl Ball Bear Rl, Stamped Stl Rleze Glass
1-1/4 In. Steel Roller
Ball Bearing
Stamped Steel Housing With Roller
3/4 In. Wide, 1-1/8 In. Tall And 2-1/8 In. Long
Insert The Roller Into The Bottom Rail Without The Screw. Replace The Side Stile. As The Screw Draws The Roller's Bottom Backside Tighter, The Design Causes The Far End To Rotate Downward Causing The Roller To Lift The Door To The Desired Height
Used On Metal Framed Doors
Used By Rolleze Glass And Rylock
For Further Dimensional Information, Please See The Line Drawing
