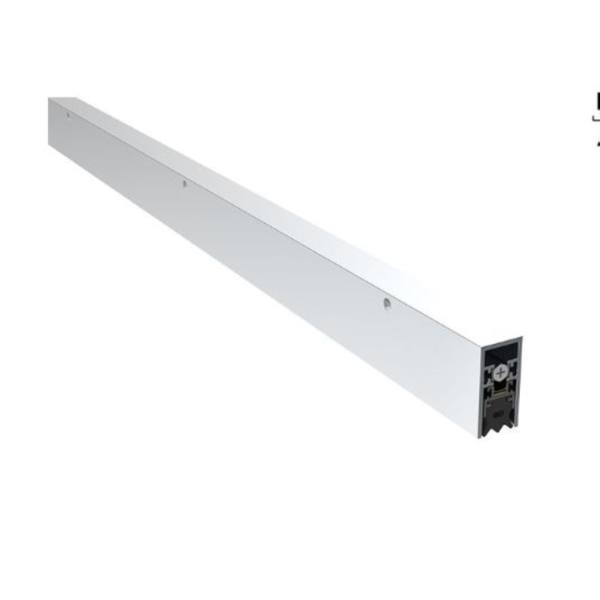

PEMKO Door Bottom Surface Sponge EPDM Seal 36in 3/4in Max Drop
Handed, Semi-Mortise And Full Surface Automatic Door Bottom Is A Heavy-Duty Solution For Preventing Air, Light, Sound, Fire, Smoke, Dust, And Moisture From Entering The Gap Under Doors.
Features a drop-down seal that is lowered when the door is closed.
Door bottom is available in anodized finishes and has a choice of Nylon Brush, PemkoPrene, or EPDM rubber seal.
Can be surface mounted or semi-mortised applied to the face of the door.
Non-Handed, Semi-Mortise and Full Surface
When ordering, must specify if the automatic door bottom is for a semi-mortise application so that shorter screws can be provided
Smoother action positive seal mechanism: Aluminum case encloses a movable drop-bar seal actuated by a jamb-contacting plunger during door closure, providing an effective seal
Most models available with nylon brush (NB) seals. Nylon filaments conform extremely well to irregular surfaces such as carpet, stone and grout lines
End plates are provided for all mounting applications
Drop-bar seal actuation mechanism (all models) ensures hinge-side actuation, preventing seal skidding and door hang up during closure
Can be trimmed down by as much as 2" in the field (stock lengths only). If non-stock sizes are ordered, order must note need to trim 2 inches from the size ordered
vailable in any size ranging from 18" to 48"
Provides excellent seal to keep out draft, dust, moisture, insects, fumes, light, and sound
Mfg #086688
