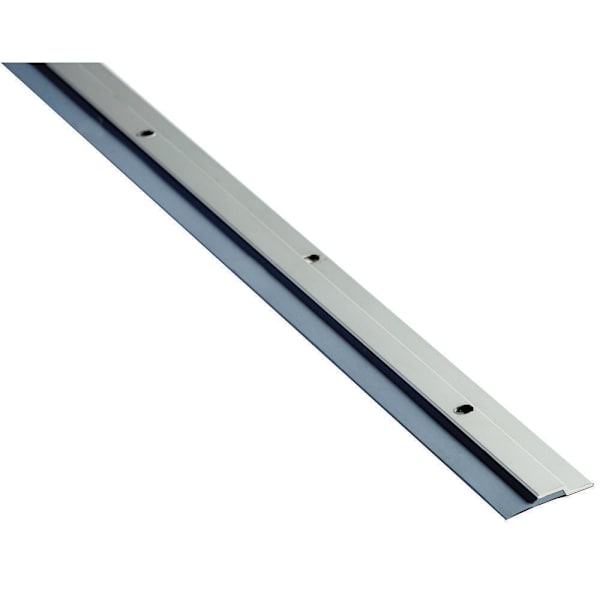

Ngp Door Astragal With Epdm Seal, Anodized, 84"

Part 406437
MFG PART 125NAx84
Brand NGP
$129.87
Quantity
Add to cart
Add to List Add to Quote
Shipping charges may apply
Usually ships within 2 days
Restocking fees may apply

About this item

  • NGP Door Astragal With EPDM Seal, Anodized, 84"
  • Aluminum Alloy 6063, T5 temper
  • Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
  • Very Good Abrasion Resistance, Tensile Strength and Memory
  • Flame-resistant
  • Temperature Range -81°F to 275°F
  • Good Resistance to Ozone, Sunlight and Aging
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration and Smoke Infiltration
  • Fire-Rated Astragal Seals Cannot Replace any Astragal Required on the Door by the Door Manufacturer to Maintain its Fire Label
  • IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8"
  • #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
  • Screw Holes are Slotted for Adjustment
  • Provided as Two-Piece Set
  • Neoprene is Black
  • Anodized Aluminum
  • MFG# 125NAx84
