Brasscraft 1/4" Turn Straight Valve 1/2" Nominal Connect Inlet X 3/8" Od Outlet

Name: Brasscraft 1/4" Turn Straight Valve 1/2" Nominal Connect Inlet X 3/8" Od Outlet
Brand: BrassCraft
SKU: 306872
Price: 12.99 USD

Part 306872

MFG PART G2CPN14X C1

Brand BrassCraft

$12.99

Quantity

Add to List Add to Quote

FREE shipping

In lower 48 states

Usually ships next day

Hassle-free returns
*see exclusions

Product Details

Product Specs

Resources

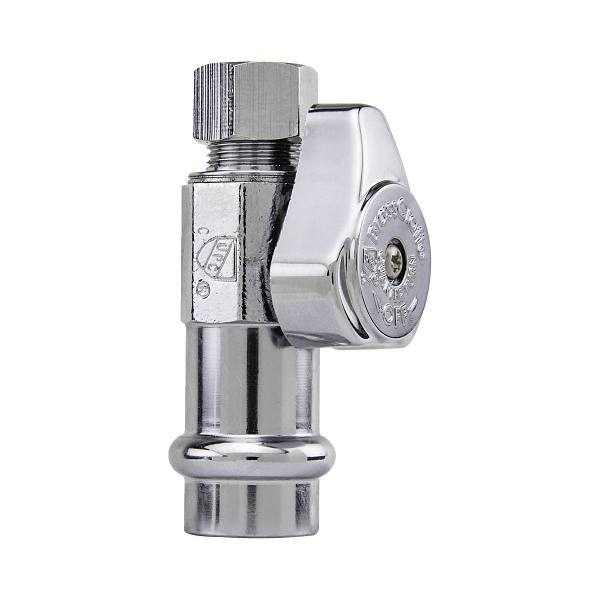

BrassCraft 1/4" Turn Straight Valve 1/2" Nominal Connect Inlet x 3/8" OD Outlet
One-Piece Brass Body For Strength And Durability
Compatible With Copper Pipe (Astm B88 Tubing)
Safe Installation Without The Need For Heat Or Flame
1/4 Handle Provides Easy On/Off Flow Control With A 90 Degree Turn Of The Handle
Chrome Plated Brass Ball Provides Corrosion Resistance And Smooth Operation
Easy-To-Remove Handle Protects Against Accidental Operation During Rough-Ins
Connection Capability On Both Wet And Dry Systems
Chrome Plated Finish
Temperature Rating: 40° To 160°F
Pressure Rating: 125 Psi Maximum
Product Certified By Iapmo To Asme Asme A112.18.1/Csa B125.1
MFG# G2CPN14X C1

Specifications
Application	Potable Water
Body Material	Brass
Body Style	Straight
For Use With	Used in Water Supply Lines,Under Sinks
Handle Type	Lever
Inlet Size	0.5 in.
Inlet Type	Press Connect
Lead Free
Maximum Working Pressure	125 PSI
Maximum Working Temperature	160 °F
Nominal Fitting Connection Size	0.5 in. x 0.37 in.
Outlet Size	0.37 in.
Outlet Type	Compression
Package Quantity	1
Product Size	2.75 in. x 2.25 in. x 2.75 in.
Stop Valve Type	Quarter Turn, Straight

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	ASME Certified, IAPMO Certified, CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous
