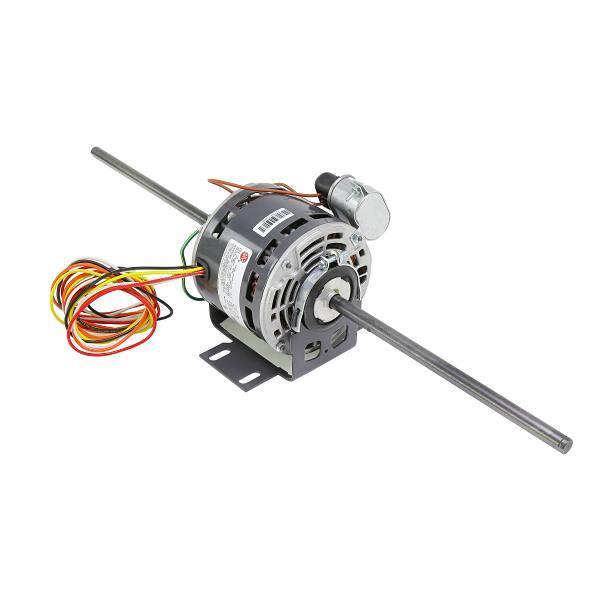

Image for Us Motors Blower Motor, 1/6hp, 115v 1625rpm 48y Oaoe Dual Shaft from HD Supply

Us Motors Blower Motor, 1/6hp, 115v 1625rpm 48y Oaoe Dual Shaft

Part 345627

MFG PART 8525

Brand US Motors

$399.79

Quantity

Add to List Add to Quote

FREE shipping

In lower 48 states

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

US Motors Blower Motor, 1/6HP, 115V 1625rpm 48Y OAOE Dual Shaft
Sleeve Bearings Have All Angle Thrust System
Continuous Duty, Air Over
Automatic Reset Thermal Overload Protector
Designed For Use With 370v Capacitors
MFG# 8525

Make & Model
Brand	US Motors
Country of Origin	MEXICO
UNSPSC	40101700
UPC	786382062163

Specifications
Amperage	2.2 amp
Frame	48 Y
Horsepower	0.16 hp
Maximum rpm	1625 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Cradle
Motor Shaft Rotation	CCWLE
Number of Phases	1
Number of Speeds	4
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	9.5 in.
Thermal Protection Rating	Auto
Voltage	115 V

Assembled Dimensions
Product Height	6 in.
Product Width	6.5 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	UL Certified
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	7.250
Length	26.350
Size Measure	IN
Weight	11.160
Weight Measure	LB
Width	6.950
