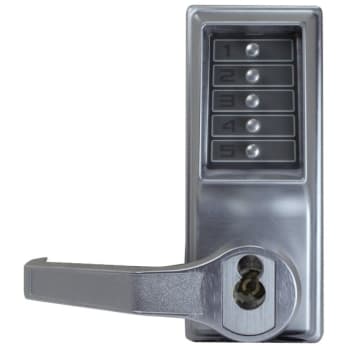

Kaba Access Simplex® L1000 Mechanical Pushbutton Lock (Satin Chrome)
Part 772409
Shipping charges may apply
Usually ships within 2 days
Restocking fees may apply

About this item

  • Mechanical Push Button Lockset - Handle Type Lever - Function Entry with Key Override - Passage - Key Override Options Replaceable Core Schlage - Hand Left - Finish Satin Chrome - Door Thickness 1 - 3/8" to 2-1/4" Keypad 5 Button - Vandal Resistant - Backset 2-3/4" ADA Compliant Yes - 3 hour Fire Rated - Case Material Zinc - Series L1000 - Latch Length 1/2" Maximum User Codes 1 - Standards ANSI 156.2 - Weather Resistant Yes.
  • Cylindrical latch with 3 Hr UL/ULC fire rating for "A" labeled doors
  • Single access code one easy to manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory handed not field reversible
  • Small format best and equivalents (6 or 7 pin length), core not included
  • Large format Medeco/ASSA/Yale/Abloy (5 or 6 pin length), Corbin Russwin (6 pin length), Schlage® and Sargent®, core not included
  • Passage (select models) allows access without using the lock entry code
  • Feature activated from the inside with a thumbturn or key (included with all passage feature models)
  • Privacy (select models) disables the lock from the inside so that the entry code cannot be used to gain access
  • Access is permitted using the key override only when in this mode
  • A cost effective access control solution
  • heavy duty cylindrical lock housing with cast front housing, unified trim plate
  • Easily installs on wood or metal doors
  • ASA 161 door preparation with additional through holes
  • Mfg #LL1041S-26D-41
