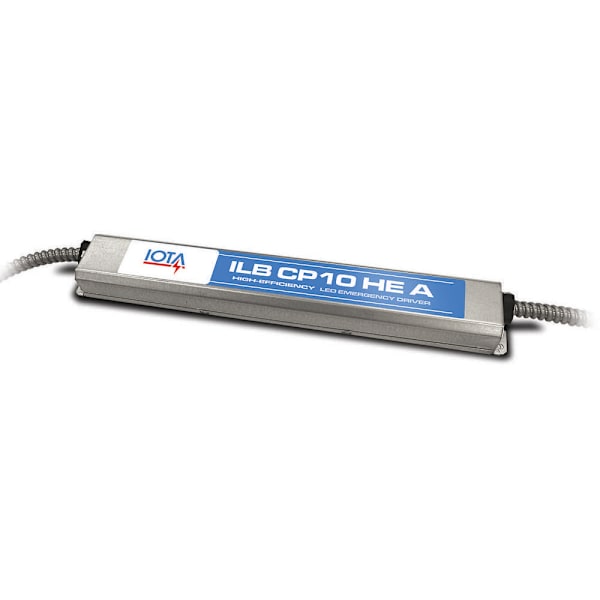

Sd Is A Ul Listed Led Emergency Driver That Allows The Same Led Fixture To Be Used For Both Normal And Emergency Operation.
The Unit Contains A Battery, Charger, And Converter Circuit And Is Available In Flexed Or Non-Flex Mounting Configurations For Individual Fixture Requirements
10 Watts With Constant Power At A Rated Output Voltage Of 15v-55v
120-277vac, 50/60hz
15-55vdc Class 2 Compliant
.053a (Max)
Complies To Fcc Commercial Limits
Meets Ansi/Ieee C62.41.2-2002
Lithium Iron-Phosphate
24 Hour Recharge 5-7 Year Life Expectancy
In The Event Of A Power Failure, The Ilblp Cp10 He Sd Switches Power From The Normal Ac Driver And Operates The Fixture For 90 Minutes In The Emergency Mode From The Unit’s Battery Supply
