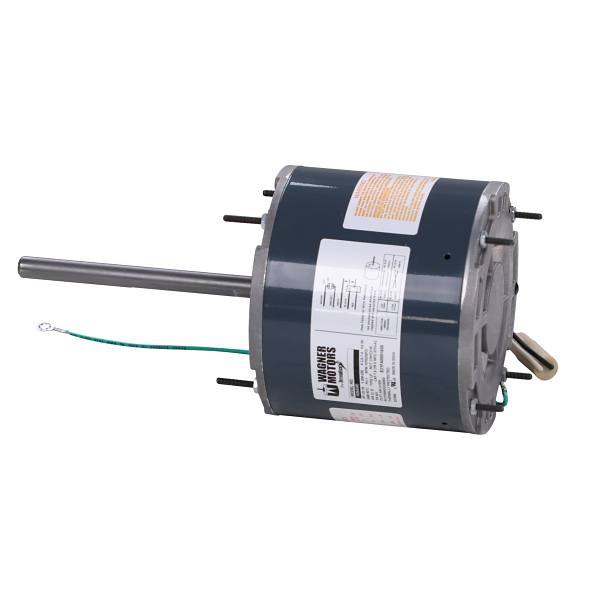

Image for Diversitech 1/3-1/6 Hp, 208-230 VAC Condenser Fan Motor 1075 RPM from HD Supply

Diversitech 1/3-1/6 Hp, 208-230 VAC Condenser Fan Motor 1075 RPM

Part 346665

MFG PART WG840465

Brand Diversitech

$128.99

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 4 days

Restocking fees may apply

Product Details

Product Specs

Resources

Diversitech 1/3-1/6 HP, 208-230 VAC Condenser Fan Motor 1075 RPM
Standard 48 Frame Motor Casing Size.
Standard Shaft Length, Diameter, And Flats.
Electrically Reversible.
Automatic Thermal Overload Protector.
Class B Insulation.
Continuous Air Over.
Low Power Consumption.
Quiet Operation.
MFG# WG840465

Make & Model
Brand	Diversitech
Country of Origin	MEXICO
UNSPSC	26101105
UPC	095247092802

Specifications
Bearing Type	Ball
Enclosure Style	Enclosed
Frame Material	Steel
Frame Size	48
Frequency	60 Hz
Full Load Amperage	2.6 amp
Horsepower	0.33 hp
Insulation Class	B
Maximum rpm	1075 RPM
Motor Design	Permanent Split Capacitor
Motor Mounting Type	Belly Band
Motor Rotation	Reversible
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	5 in.
Voltage	208 - 230 V

Assembled Dimensions
Product Depth	12.88 in.
Product Height	7.25 in.
Product Width	6.63 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	No Certifications or Listings
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	7.250
Length	12.880
Size Measure	IN
Weight	13.627
Weight Measure	LB
Width	6.630
