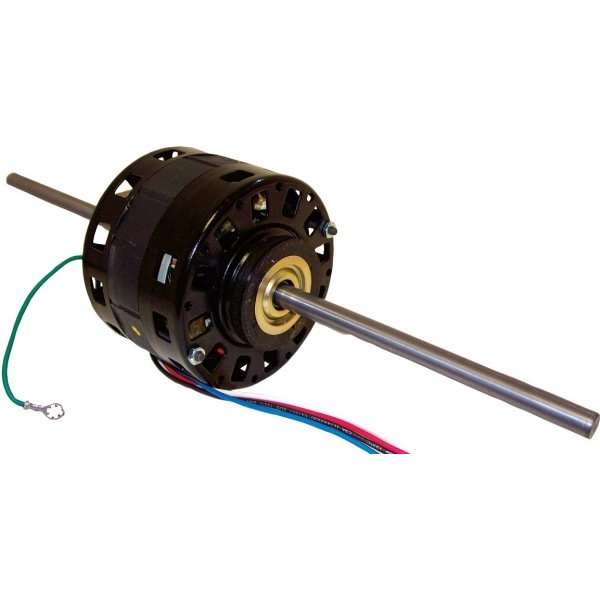

Image for Century Dc4522 Double Shaft Blower Motor, 5" 2.8 Amps, 1/5 - 1/10 Hp, 1,550 Rpm from HD Supply

Century Dc4522 Double Shaft Blower Motor, 5" 2.8 Amps, 1/5 - 1/10 Hp, 1,550 Rpm

Part 246476

MFG PART DC4522A

Brand Century

$321.41

Quantity

Add to List Add to Quote

FREE shipping

In lower 48 states

Non-returnable

Cannot be returned or exchanged

Usually ships next day

Product Details

Product Specs

Resources

Century DC4522 DOUBLE SHAFT BLOWER MOTOR, 5" 2.8 AMPS, 1/5 - 1/10 HP, 1,550 RPM
Capacitor Included
Auto Protector
Open Construction
Counter Clockwise Rotation
MFG# DC4522A

Make & Model
Brand	Century
Country of Origin	MEXICO
UNSPSC	40101601
UPC	786674018458

Specifications
Amperage	2.8 amp
Frame	42 Y
Horsepower	0.2 hp
Maximum rpm	1550 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Ring
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1150 RPM
Number of Phases	1
Number of Speeds	2
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	10.18 in.
Thermal Protection Rating	Auto
Voltage	208-230 V

Assembled Dimensions
Product Depth	5 in.
Product Height	21.8 in.
Product Width	5 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	No Certifications or Listings
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	7.100
Length	27.300
Size Measure	IN
Weight	8.900
Weight Measure	LB
Width	7.000
