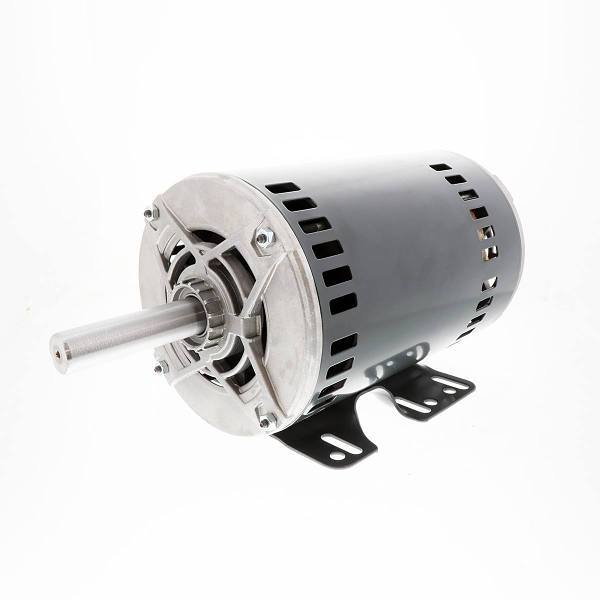

Image for Carrier Motor 208-230/460v Wb Mounting Hd58fe651 from HD Supply

Carrier Motor 208-230/460v Wb Mounting Hd58fe651

Part 348717

MFG PART HD58FE651

Brand Carrier

$1,784.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER Motor 208-230/460V WB Mounting HD58FE651
3 Phase
MFG# HD58FE651

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	26101100

Specifications
Amperage	3.4-7.5 amp
Frame	56 Y
Horsepower	2.9 hp
Maximum rpm	1725 RPM
Motor Design	ECM
Motor Enclosure Design	Open Drip Proof
Motor Mounting Type	Welded Bolt
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1725 RPM
Number of Speeds	1-Speed
Package Quantity	1
Phase	Three
Shaft Diameter	0.87 in.
Shaft Length	3.25 in.
Thermal Protection Rating	None
Voltage	460 V

Assembled Dimensions
Product Depth	15.5 in.
Product Height	7.4 in.
Product Width	10.1 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	11.500
Length	10.000
Size Measure	IN
Weight	36.500
Weight Measure	LB
Width	15.500
