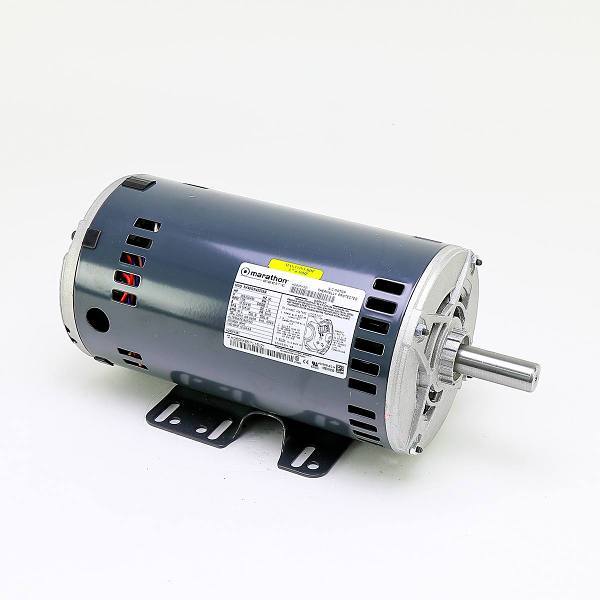

Image for Carrier Motor 208-230/460v 3 Phase 1725 RPM Counter Clockwise Rotation Wb Mount from HD Supply

Carrier Motor 208-230/460v 3 Phase 1725 RPM Counter Clockwise Rotation Wb Mount

Part 349297

MFG PART HD60FK651

Brand Carrier

$1,715.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

Carrier Motor 208-230/460V 3 Phase 1725 RPM Counter Clockwise Rotation WB Mount
3 Phase
MFG# HD60FK651

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	26101100

Specifications
Amperage	4.8-10.2 amp
Frame	56 HZ
Horsepower	3 hp
Maximum rpm	1725 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open
Motor Mounting Type	Welded Bolt
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1725 RPM
Number of Speeds	1-Speed
Package Quantity	1
Phase	Three
Shaft Diameter	0.87 in.
Shaft Length	2.25 in.
Thermal Protection Rating	None
Voltage	460 V

Assembled Dimensions
Product Depth	15.5 in.
Product Height	6.5 in.
Product Width	6.5 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	20.050
Length	11.550
Size Measure	IN
Weight	42.910
Weight Measure	LB
Width	12.100
