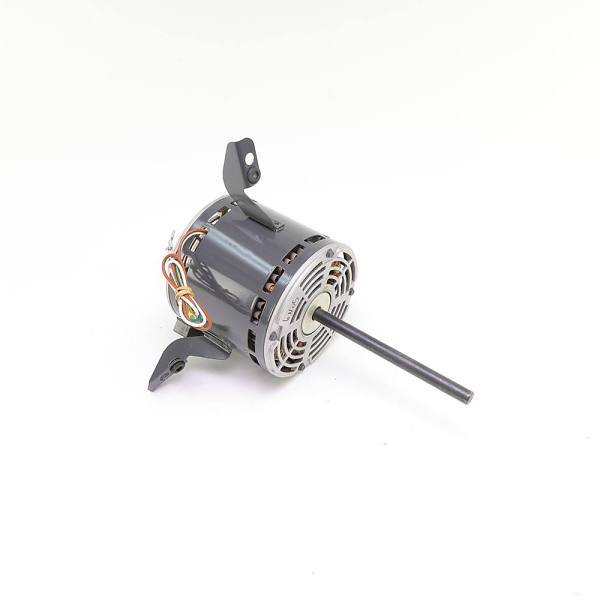

Image for Carrier 460v 1ph 1/2hp 1025 RPM 3 Speed Motor 14b0006n05 from HD Supply

Carrier 460v 1ph 1/2hp 1025 RPM 3 Speed Motor 14b0006n05

Part 351420

MFG PART 14B0006N05

Brand Carrier

$389.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 460V 1Ph 1/2Hp 1025 RPM 3 Speed Motor 14B0006N05
1 Phase
3 Speeds
MFG# 14B0006N05

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	40101833

Specifications
Amperage	1.7 amp
Frame	48 Y
Horsepower	0.5 hp
Maximum rpm	1025 RPM
Motor Design	Permanent Split Capacitor
Motor Mounting Type	Built-In Bracket
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1025 RPM
Number of Speeds	3-Speeds
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	7 in.
Thermal Protection Rating	Auto
Voltage	460 V

Assembled Dimensions
Product Height	10.25 in.
Product Width	10.25 in.

Certifications & Standards
AbilityOne
ADA Compliant
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	14.700
Length	14.800
Size Measure	IN
Weight	18.090
Weight Measure	LB
Width	14.550
