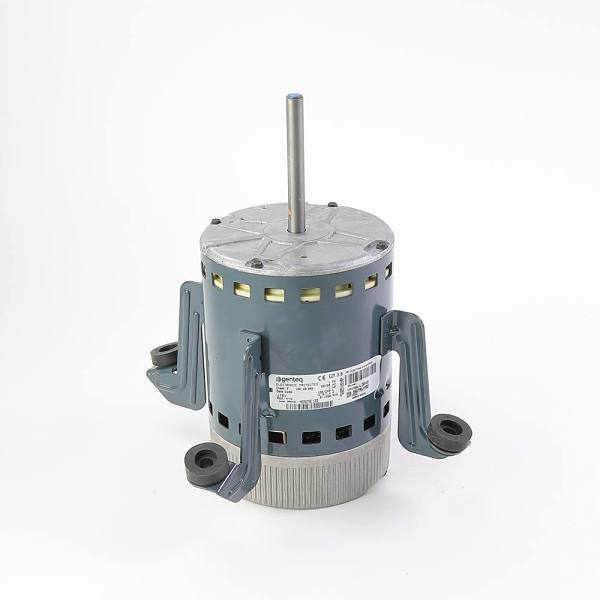

Image for Carrier 3.0 Ecm Motor With Harness 58mv660005 from HD Supply

Carrier 3.0 Ecm Motor With Harness 58mv660005

Part 351552

MFG PART 58MV660005

Brand Carrier

$1,799.29

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 3.0 Ecm Motor With Harness 58MV660005
Blower Motor
1 Hp
MFG# 58MV660005

Make & Model
Brand	Carrier
Country of Origin	USA
UNSPSC	26101100

Specifications
Amperage	12.8 amp
Frame	39 Y
Horsepower	1 hp
Maximum rpm	1300 RPM
Motor Design	ECM
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Wings
Motor Shaft Rotation	REV
Name Plate RPM	1300 RPM
Number of Phases	1
Number of Speeds	Variable
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	3.93 in.
Thermal Protection Rating	Auto
Voltage	120-240 V

Assembled Dimensions
Product Height	11.75 in.
Product Width	11 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	UL Listed, CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	11.300
Length	10.650
Size Measure	IN
Weight	20.050
Weight Measure	LB
Width	14.650
