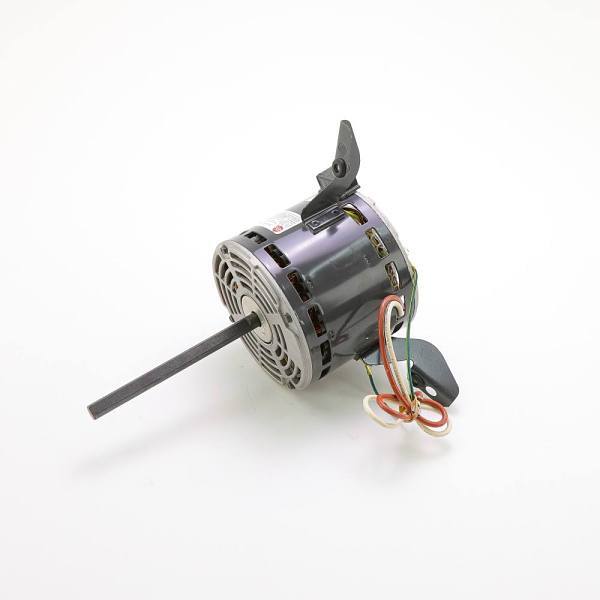

Image for Carrier 208-230v 1ph 1050 RPM 1/3hp Motor 14b0005n01 from HD Supply

Carrier 208-230v 1ph 1050 RPM 1/3hp Motor 14b0005n01

Part 351417

MFG PART 14B0005N01

Brand Carrier

$499.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 208-230V 1Ph 1050 RPM 1/3Hp Motor 14B0005N01
1 Phase
MFG# 14B0005N01

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	40101833

Specifications
Amperage	2.2 amp
Frame	48 Y
Horsepower	0.33 hp
Maximum rpm	1050 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Vertical Shaft Down
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1050 RPM
Number of Speeds	3-Speeds
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	7 in.
Thermal Protection Rating	Auto
Voltage	208-230 V

Assembled Dimensions
Product Height	11.12 in.
Product Width	10.5 in.

Certifications & Standards
AbilityOne
ADA Compliant
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	9.000
Length	11.000
Size Measure	IN
Weight	13.930
Weight Measure	LB
Width	10.250
