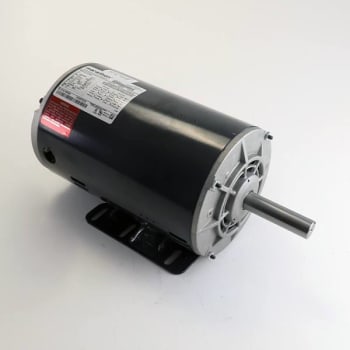

Image for Carrier 208-230/460v 3ph 1725 RPM 2.9hp Hd58fr233 from HD Supply

Carrier 208-230/460v 3ph 1725 RPM 2.9hp Hd58fr233

Part 348714

MFG PART HD58FR233

Brand Carrier

$2,103.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 208-230/460V 3Ph 1725 RPM 2.9Hp HD58FR233
3 Phase
MFG# HD58FR233

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	40101802

Specifications
Amperage	8.3 amp
Frame	56
Horsepower	2.9 hp
Maximum rpm	1725 RPM
Motor Enclosure Design	Open Drip Proof
Motor Mounting Type	Belt Drive
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1725 RPM
Number of Speeds	1-Speed
Package Quantity	1
Phase	Three
Shaft Diameter	0.875in.
Shaft Length	3.19in.
Thermal Protection Rating	None
Voltage	460 V

Assembled Dimensions
Product Depth	10.2 in.
Product Height	6 in.
Product Width	6 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	20.550
Length	9.450
Size Measure	IN
Weight	47.770
Weight Measure	LB
Width	11.400
