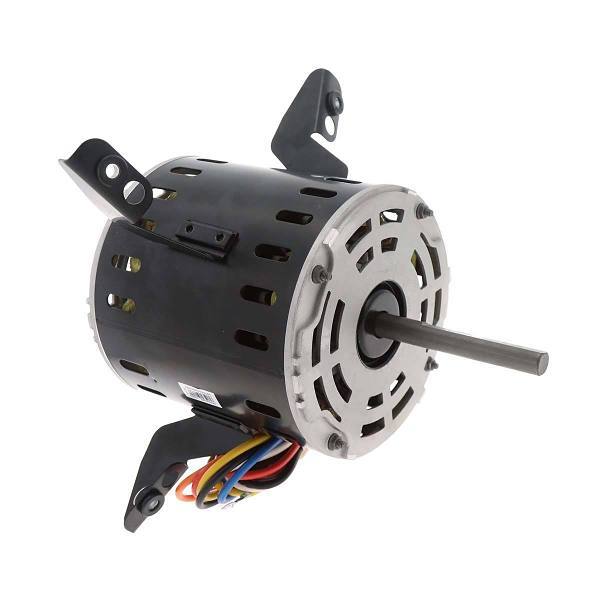

Image for Carrier 115v 1ph 3/4hp 5 Speed 1075 RPM Motor from HD Supply

Carrier 115v 1ph 3/4hp 5 Speed 1075 RPM Motor

Part 349268

MFG PART HC45TQ125

Brand Carrier

$562.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

Carrier 115V 1Ph 3/4Hp 5 Speed 1075 RPM Motor
1 Phase
5 Speeds
MFG# HC45TQ125

Make & Model
Brand	Carrier
Country of Origin	CHINA
UNSPSC	40101802

Specifications
Amperage	7.9 amp
Frame	48
Horsepower	0.75 hp
Maximum rpm	1075 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Arm and Grommet
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1075 RPM
Number of Speeds	5-Speeds
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	3.5 in.
Thermal Protection Rating	None
Voltage	115 V

Assembled Dimensions
Product Depth	8.7 in.
Product Height	9.2 in.
Product Width	8.7 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	11.450
Length	11.600
Size Measure	IN
Weight	20.480
Weight Measure	LB
Width	11.650
