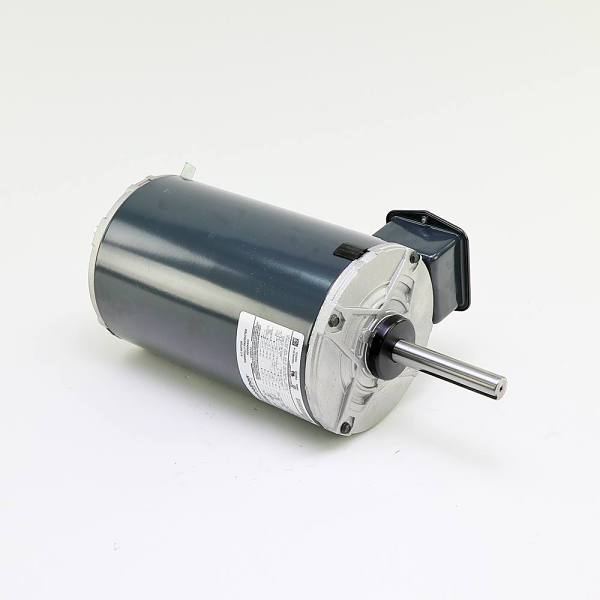

Image for Carrier 1140 RPM 208-230/460v 56y Motor Hd56ak653 from HD Supply

Carrier 1140 RPM 208-230/460v 56y Motor Hd56ak653

Part 348718

MFG PART HD56AK653

Brand Carrier

$2,354.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 1140 RPM 208-230/460V 56Y Motor HD56AK653
56y Frame
MFG# HD56AK653

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	40101802

Specifications
Amperage	3.3-6.6 amp
Frame	56 Y
Horsepower	2 hp
Maximum rpm	1140 RPM
Motor Design	ECM
Motor Enclosure Design	Totally Enclosed Air-Over
Motor Mounting Type	Shaft End Up
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1140 RPM
Number of Speeds	1-Speed
Package Quantity	1
Phase	Three
Shaft Diameter	0.75 in.
Shaft Length	3.75 in.
Thermal Protection Rating	None
Voltage	460 V

Assembled Dimensions
Product Depth	9.5 in.
Product Height	15.8 in.
Product Width	7 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	19.550
Length	10.150
Size Measure	IN
Weight	45.130
Weight Measure	LB
Width	12.900
