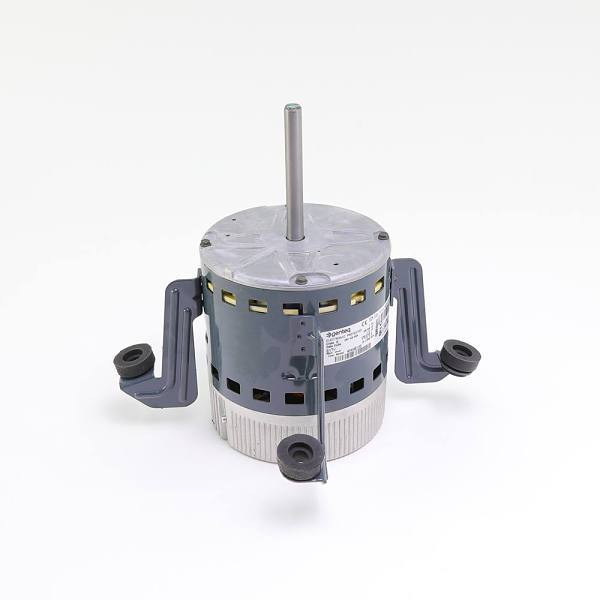

Image for Carrier 1/2hp 120/240v 1300 RPM 48 Frame 58mv660004 from HD Supply

Carrier 1/2hp 120/240v 1300 RPM 48 Frame 58mv660004

Part 351551

MFG PART 58MV660004

Brand Carrier

$1,401.09

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 1/2Hp 120/240V 1300 RPM 48 Frame 58MV660004
48 Frame
MFG# 58MV660004

Make & Model
Brand	Carrier
Country of Origin	USA
UNSPSC	27112000

Specifications
Amperage	7.4 amp
Frame	48 Y
Horsepower	1 hp
Maximum rpm	1300 RPM
Motor Design	ECM
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Vertical Shaft Down
Motor Shaft Rotation	CWLE
Name Plate RPM	1300 RPM
Number of Phases	1
Number of Speeds	Variable
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	3.93 in.
Thermal Protection Rating	Auto
Voltage	120-240 V

Assembled Dimensions
Product Height	11 in.
Product Width	11 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	UL Listed, CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	14.750
Length	10.550
Size Measure	IN
Weight	14.130
Weight Measure	LB
Width	11.350
