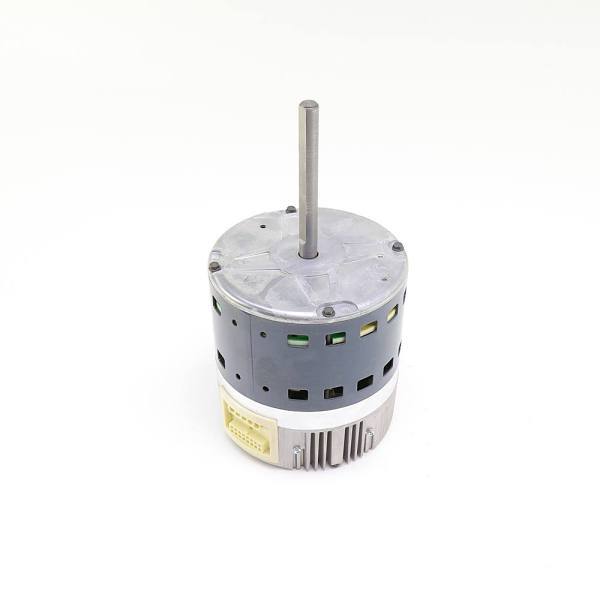

Image for Carrier 1/2hp 0-1400 RPM 120/240 1 Phase Hd44ar135 from HD Supply

Carrier 1/2hp 0-1400 RPM 120/240 1 Phase Hd44ar135

Part 348731

MFG PART HD44AR135

Brand Carrier

$920.89

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 1/2Hp 0-1400 RPM 120/240 1 Phase HD44AR135
1 Phase
MFG# HD44AR135

Make & Model
Brand	Carrier
Country of Origin	MEXICO
UNSPSC	26101100

Specifications
Amperage	4.3-7.7 amp
Frame	39
Horsepower	0.5 hp
Maximum rpm	1050 RPM
Motor Design	ECM
Motor Mounting Type	Belly Band
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1050 RPM
Number of Phases	1
Number of Speeds	Variable
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	4.3 in.
Thermal Protection Rating	None
Voltage	120-240V

Assembled Dimensions
Product Depth	5.6 in.
Product Height	9.9 in.
Product Width	5.5 in.

Certifications & Standards
AbilityOne
ADA Compliant
Certifications & Standards	CSA Listed
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	14.800
Length	8.050
Size Measure	IN
Weight	10.250
Weight Measure	LB
Width	7.850
