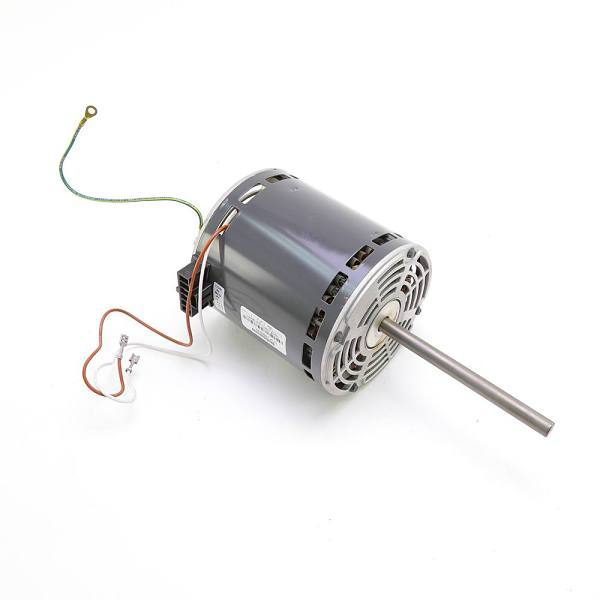

Image for Carrier 1/2-1/3hp 460/380-420v 48y 3 Speed 14b0008n04 from HD Supply

Carrier 1/2-1/3hp 460/380-420v 48y 3 Speed 14b0008n04

Part 351422

MFG PART 14B0008N04

Brand Carrier

$553.00

Quantity

Add to List Add to Quote

Shipping charges may apply

Usually ships within 2 days

Restocking fees may apply

Product Details

Product Specs

Resources

CARRIER 1/2-1/3Hp 460/380-420V 48Y 3 Speed 14B0008N04
3 Speeds
48y Frame
MFG# 14B0008N04

Make & Model
Brand	Carrier
Country of Origin	USA
UNSPSC	40101833

Specifications
Amperage	2.4 amp
Frame	48 Y
Horsepower	0.5 hp
Maximum rpm	1060 RPM
Motor Design	Permanent Split Capacitor
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Vertical Shaft Down
Motor Shaft Rotation	CW/CCW
Name Plate RPM	1060 RPM
Number of Phases	1
Number of Speeds	3-Speeds
Package Quantity	1
Phase	Single
Shaft Diameter	0.5 in.
Shaft Length	14 in.
Thermal Protection Rating	Auto
Voltage	240-480 V

Assembled Dimensions
Product Height	12 in.
Product Width	5.6 in.

Certifications & Standards
AbilityOne
ADA Compliant
GSA Approved
Made in the USA
TAA/BAA Compliant
UL Listed

HazMat
Hazardous

Packaging Dimensions
Height	5.850
Length	12.350
Size Measure	IN
Weight	20.290
Weight Measure	LB
Width	7.900
